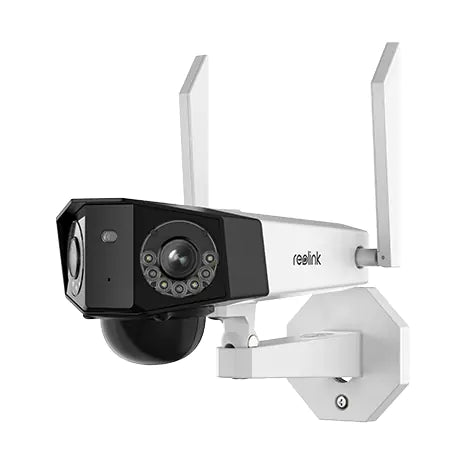

REOLINK 2K 4MP Twin Lenses - DUOWIFI

Video & Audio

Image Sensor: 1/3" CMOS Sensors

Video Resolution: Default: 2560X1440 (4.0 Megapixels) at 15 frames/sec

Lens: f= 4.0 mm fixed, F= 2.0

Video Format: H.264

Field of View

• Horizontal: 150°

• Vertical: 44°

Day & Night: Auto-switching with IR cut filter

Infrared Night Vision: 30 Meters (LED: 6pcs/20mil/850nm)

Color Night Vision: Spotlight: 8pcs/5W/6500K/560 Lumens

Audio: Two-way audio

Power

DC Power: DC 12.0V=2A, <15W

Interface

Power: DC power port

System: Reset button

Ethernet: One 10M/100Mbps; RJ45

Storage: Micro SD card slot (Max. 256GB)

Audio: Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 2fps - 25fps (default: 15fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 1024Kbps -5120Kbps (default: 3072Kbps)

• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browser Supported: Edge, Chrome, Firefox, Safari

OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm: Motion detection/person detection/vehicle detection

Record Mode: Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access: 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Wi-Fi

Wireless Standard: IEEE 802.11a/b/g/n

Operating Frequency: 2.4GHz/5GHz

Wireless Security: WPA-PSK/WPA2-PSK

Working Environment

Temperature: Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity: Operating humidity: 10% ~ 90%Waterproof: IP66

Size & Weight

Dimension: 195x103x56 mm

Weight: 680g
