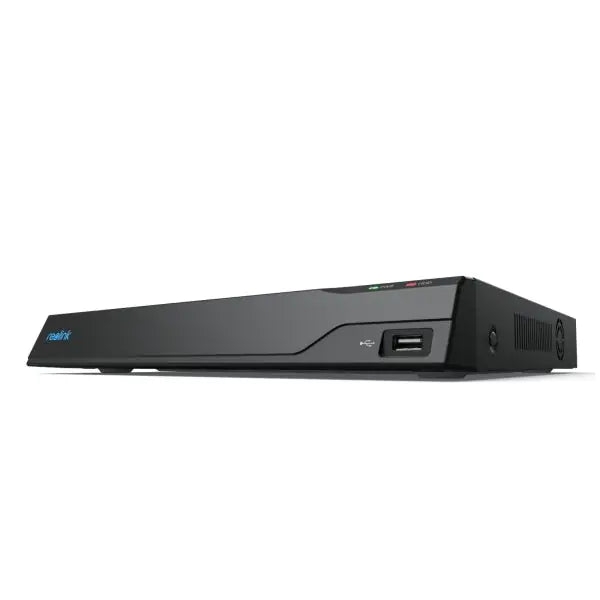

Reolink NVS16 RLN16-410 - 16-Channel PoE NVR for 24/7 Recording, Support up to 16MP, 4TB HDD Built-in, Up to 12TB Storage Capacity
Estimated delivery: 2–3 days in Malta.
Ask for a better price via WhatsApp!
Gozo delivery: price on request, we'll call you to confirm.
Couldn't load pickup availability
Description
24-Channel PoE NVR for 24/7 Continuous Recording
- Supporting Up to 16MP
- Power over Ethernet
- Pre-installed 4TB HDD
- Expandable Storage up to 16TB
Reolink NVS16 16-Channel PoE NVR with 4TB HDD – High-Definition Surveillance Recorder
Installation Made Easy
The PoE technology can transmit both data and power via only one Ethernet cable, streamlining setup.
24/7 Recording
Continuous recordings directly to your hard drive with expandable storage.
16 Channels, Up to 16MP
Supports up to 16 channels of IPC access; each channel up to 16MP input without any monthly costs.
Stay Connected via Your Phone/PC
Know what's happening on your property anytime, anywhere via your Reolink App and Client, whether you're at home or on the go. No monthly fees.
Find the Clip Needed Quickly
Effortlessly navigate through your video footage with time and event filters to quickly find the exact clip you need, saving you time and hassle.
Up to 12TB Storage Capacity
Store videos locally on a pre-installed 4TB HDD (upgradable to 12TB).
Specifications (Download as PDF)
Hardware
Video/Audio Input
Video Input
PoE IP camera x 16
Cameras with built-in mic
Video/Audio Output
VGA, HDMI
1-channel, RCA
- HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
- VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Decoding
Live View / Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Synchronous Playback
Up to 4 channels
H.265, H.264
HDD
SATA
2 x SATA interface (1 x 4TB HDD included)
External HDD
No
Capacity
Up to 12TB (max. 6TB capacity for each HDD)
External Interface
USB Interface
2 x USB 2.0
• 1, RJ-45 10/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
PoE
Max. Power Per Port
25W
Supported Standard
IEEE 802.3 af/at
Network
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS,
DDNS, NTP, FTP
OS Supported
PC: Windows, Mac OS; smartphone: iOS, Android
Browser Supported
Firefox, Chrome, Edge, Safari
Max. User Access
20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V~54V
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Weight
2.4kg
Power Consumption
<10W (without HDD & PoE)
Dimensions
330 x 45 x 285mm
